Perspective Selector

Introduction & Purpose

The Perspective Selector is a new interactive chart type introduced for enhancing presentations in Valsight. Its primary purpose is to enable decision-makers and presenters to apply predefined filters across sheets in a visually appealing, intuitive way — without switching to edit mode or accessing complex filter configurations.

Why it Matters

• Seamless Presentation Mode: Quickly adjust views during discussions.

• No Technical Know-How Required: Apply complex filters via a single click.

• Visual Storytelling: Each perspective can include images and tailored filter sets.

This functionality significantly simplifies scenario exploration and data storytelling during live meetings.

Navigating to the Feature

1. Creating a Perspective Selector

1. Open a Sheet within your workspace.

2. Click on “+ Chart” to open the chart wizard.

3. Under the “Others” section, find and select the “Perspective Selector” chart type.

2. Configuring Each Perspective

A Perspective consists of a “Name”, an “Image” and a “Filter Selection”. All properties are optional and can be configured in every combination.

• Perspective Name: The name will be shown in the perspective tile. If you upload an additional image the name will be shown as a tooltip.

• Add Image (optional):

  • Upload PNG/JPG (max 2.5MB, max width 1920px).

  • If no image is provided, the name will be shown in the tile.

• Add Filters:

  • Select filter dimensions and values.

  • Use the “Manage filters” button to edit filters.

  • Applied filters are shown as tags in the dialog.

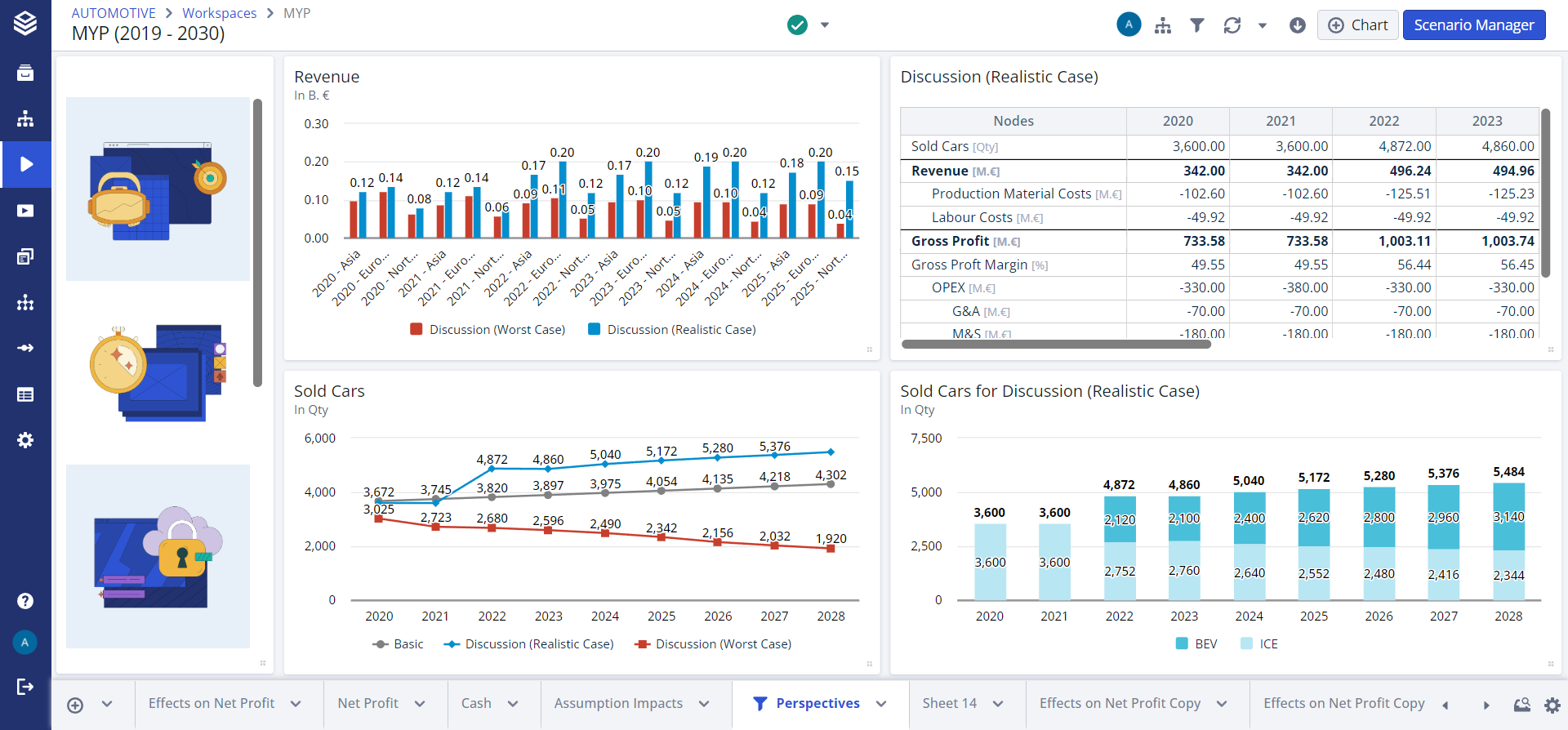

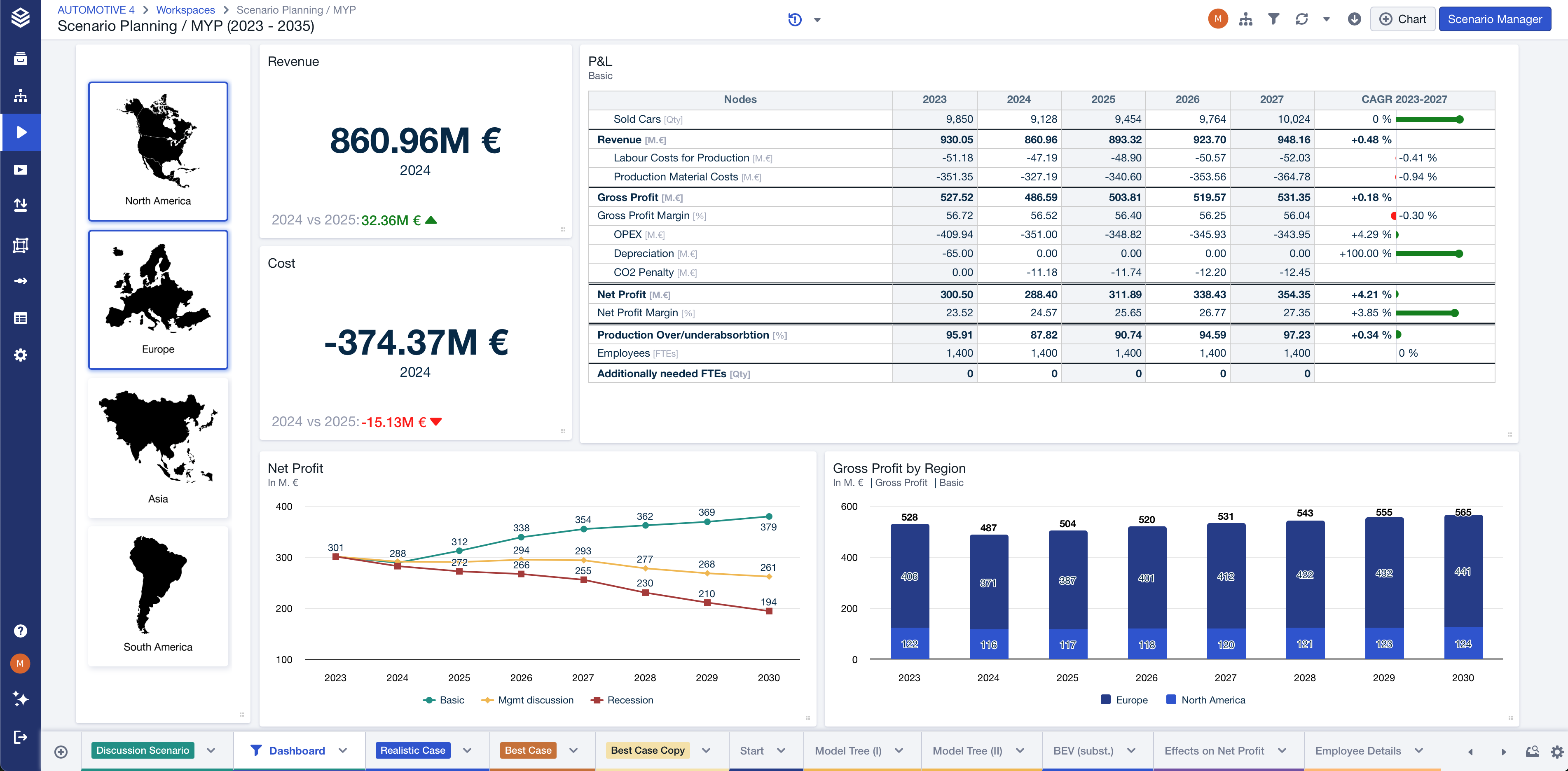

3. Interacting with the Tile

Once created:

• Each draggable tab appears as a clickable button on the tile.

• Clicking a button applies the associated filter set.

• The tile header shows Edit and Settings (⚙️) icons on hover.

• Via the cogwheel:

  • Rename the tile via “Edit title”.

• The tile can also be:

  • Moved

  • Duplicated

  • Saved as a template (like other charts)

Managing & Customizing

Admin/User Rights

• No per-user customization: Perspectives are shared and synced across users.

• Edits in configuration dialogs are locked while someone is editing to avoid conflicts.

Tile Customization

• Perspectives tile supports standard layout behaviors:

  • Can be rearranged and resized.

  • Supports vertical scroll if buttons/images exceed viewport. A horizontal Perspective tile can not be configured.

  • Combining multiple perspective tiles to impact a worksheet is also possible.

Filter Behavior

• Perspective Filters Logic:

  • Filters within a perspective: UNION

  • Across perspectives: applied based on button click (only one active)

  • Combined with other sheet filters using INTERSECTION

• No changes to:

  • Sheet-level filters

  • Filter conflict detection

  • Chart subtitles (Perspective filters won’t appear here)

Perspectives are limited by the applied workspace filters, worksheet filters and chart filters.

Limitations

• Perspective Selectors are not shown in presentation mode.

• This feature requires CORPORATE or ENTERPRISE licenses.

Example Use Case

Imagine a boardroom slide where different departments (Sales, Marketing, Finance) need custom views. With the Perspective Selector:

• Each department has a pre-defined button.

• During the meeting, click a button to instantly shift the view to that department’s filters.

• Presentations stay clean, contextual, and responsive without edit interruptions.
