Example Model with absolute Market Data and Correlation

Learn how to build a model with a rollforward logic that adjusts the market growth with a correlation factor.

Basic Overview

Variable Costs should be automatically calculated for the future, based on a correlation factor with the market, which is modeled as absolute values. Hence, we derive the market growth, have the correlation factor influence the growth, and then use that weighted market growth to "Rollforward" the cost base.

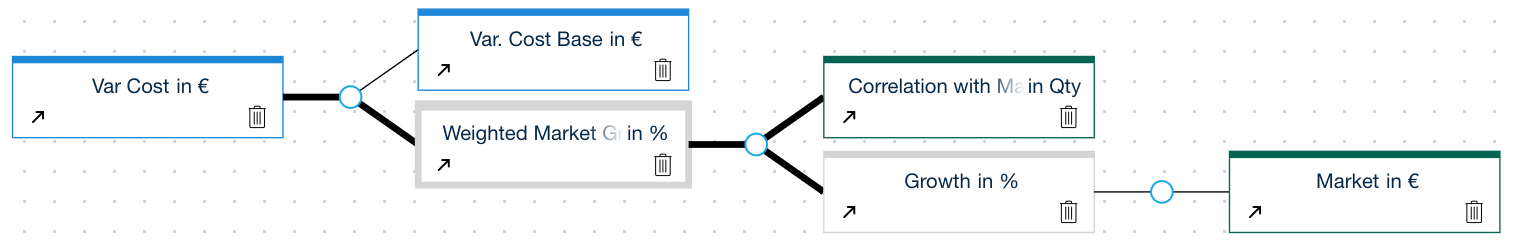

Model overview

Input Data

  • Market data for all years (Created in-place via EXPANDSINGLE in the example)

  • Var. Cost Base - Base Data for the first year of the simulation

Calculations

Node

Formula

Explanation / Notes

Growth

ADDEACH('Market' / SHIFT('Market',"Year",-1),-1)

See: YOY-Growth Pattern

  • SHIFT with "-1" gets the previous year

  • ADDEACH "-1" subtract -1 (=100%) from each year.

  • Hint: ('Market'  - SHIFT('Market',"Year",-1) ) / SHIFT('Market',"Year",-1) leads to the same result

Weighted Market Growth

'Correlation with Market' * 'Growth'

This Node can also be left out and the formula used directly in the "Var Cost" node.

Correlation with Market

EXPAND(1,"Year")

Use a default 1 for 1 correlation. This Node can be changed in the simulation

Var Cost

ROLLFORWARD('Var. Cost Base','Weighted Market Growth')

Use the Rollforward logic to forecast values for the simulation years.

Full Model Download

This Model uses the following functions:

  • ROLLFORWARD

  • ADDEACH

  • SHIFT

  • EXPAND & EXPANDSINGLE

The example Model does not need an external Data Source. The complete Model code:

CODE
model("Correlation Model") {
    horizon "Year", "2017", "2020"
    defaultDigits 5
    defaultScale "s"
    defaultUnit "Scalar"

    baseline "Default Scenario"

    node("Correlation with Market") {
        operation """EXPAND(1,"Year")"""
        simulationType "SIM"
        expectedLevels "Year"
        aggregationType "SUM"
    }

    node("Growth") {
        operation """ADDEACH('Market' / SHIFT('Market',"Year",-1),-1)"""
        unit "Percent"
        expectedLevels "Year"
        aggregationType "SUM"
    }

    node("Market") {
        operation """EXPANDSINGLE(100,"Year", "2017") +EXPANDSINGLE(105,"Year", "2018")+EXPANDSINGLE(107,"Year", "2019")+EXPANDSINGLE(110,"Year", "2020")"""
        expectedLevels "Year"
        aggregationType "SUM"
    }

    node("Var Cost") {
        operation "ROLLFORWARD('Var. Cost Base','Weighted Market Growth')"
        expectedLevels "Year"
        aggregationType "SUM"
    }

    node("Var. Cost Base") {
        operation """EXPANDSINGLE(1000,"Year","2017")"""
        expectedLevels "Year"
        aggregationType "SUM"
    }

    node("Weighted Market Growth") {
        operation "'Correlation with Market' * 'Growth'"
        unit "Percent"
        expectedLevels "Year"
        aggregationType "SUM"
    }

}
